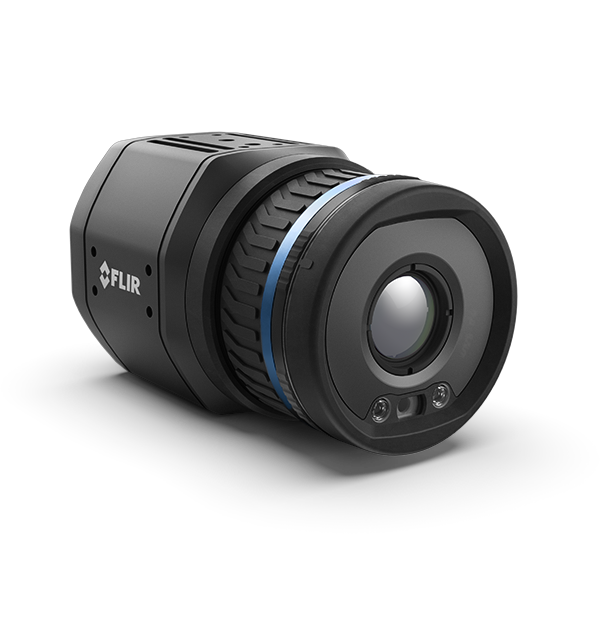

Contrast Enhancement

FSX® / Histogram equalization (IR only)

Accuracy [Drift] in Screen-EST Mode

Alarm Functions

On any selected measurement function, digital in, and internal camera temperature

Alarm Output

• Digital out • E-mail (SMTP) (push) • EtherNet/IP (pull) • File transfer (FTP) (push) • Modbus TCP slave (pull) • MQTT (push) • Query over RESTful API (pull) • Store image or video

Base Mounting

4× M4 on 4 sides

Encoding

H.264, MPEG4, or MJPEG

Housing Material

Aluminium

IR Resolution

464 x 348

Object Temperature Range

15°C to 45°C (59°F to 113°F); camera provides contrast from -20°C to 120°C (-4°F to 248°F) but will not provide temperature information

Size

(L x W x H)

123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in)

Thermal Sensitivity/NETD

Lens dependent

Web Interface

Yes

Weight

0.82 kg (1.8 lb), camera only

Multi-Streaming

Yes

FLIR Screen-EST Mode

Yes

Digital I/O Connector Type

M12 12-pin A-coded, Male (shared with external power)

Digital I/O Isolation Voltage

500 VRMS

Digital Input Purpose

NUC, NUC disable, alarm, update screening reference sample

Digital Inputs

2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V

Digital Output Purpose

As a function of alarm, output to external device (e.g. when screening alarm is triggered); fault (NC)

Digital Outputs

3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)

Ethernet

For control, result, image, and power

Ethernet Communication

TCP/IP socket-based FLIR proprietary

Ethernet Connector Type

M12 8-pin X-coded, female; RP-SMA, female

Ethernet Power

Power over Ethernet, PoE IEEE 802.3af class 3

Ethernet Protocols

• EtherNet/IP • IEEE 1588 • Modbus TCP Slave • MQTT • SNMP • TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP

Ethernet Standard

IEEE 802.3

Ethernet Type

1000 Mbps

WIFI

Yes. RP-SMA, female connector

Ethernet Interface

Wired, Wi-Fi

Multicast

Yes

Unicast

Yes

Atmospheric Transmission Correction

Based on inputs of distance, atmospheric temperature, and relative humidity

EMC

• ETSI EN 301 489-1 (radio) • ETSI EN 301 489-17 (radio) • EN 61000-4-8 (magnetic field) • FCC 47 CFR Part 15 Class B (emission US) • ISO 13766-1 (EMC - Earth-moving and building construction machinery) • EN ISO 14982 (EMC - Agricultural and forestry machinery)

Emissivity Correction

Variable from 0.01 to 1.0

Encapsulation

IEC 60529, IP 54, IP66 with accessory

Humidity (Operating and Storage)

IEC 60068-2-30/24 hours, 95% relative humidity, 25°C–40°C (77°F–104°F)/2 cycles

Operating Temperature Range

-20°C to 50°C (-4°F to 122°F); cooling plate needed for temperatures above 40°C (104°F)

Radio Spectrum

FCC 47 CFR Part 15 Class C (2.4 GHz band US), FCC 47 CFR Part 15 Class E (5 GHz band US), RSS-247 (2.4 GHz and 5 GHz band Canada), ETSI EN 300 328 V2.1.1 (2.4 GHz band EU), ETSI EN 301 893 V2.1.1 (5 GHz band EU)

Shock

IEC 60068-2-27, 25 g

Tripod Mounting

UNC ¼″-20 on 2 sides

Vibration

IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal; IEC 61373 Cat 1 (Railway)

Lens Transmission Correction

Automatic, based on signals from internal sensors

Measurement Frequency

Up to 10 Hz

Schedule Response

sftp (image), SMTP (image and/or measurement data/result)

Video Storage

Available Lenses

24°, 42°

Lens Identification

Automatic

Detector Type and Pitch

Uncooled microbolometer, 17 µm

Focus

One-shot contrast, motorized, and manual

Image Frequency

30 Hz

Radiometric IR video streaming

RTSP protocol

Readout

For measurement results: EtherNet/IP (pull); Modbus TCP master (push); Modbus TCP slave (pull); MQTT (push); Query over REST API (pull): measurements and still image (radiometric JPEG, visual 640 × 480, visual 1280 × 960) read access only; web interface

Spectral Range

7.5–14 µm

Spatial resolution (IFOV)

0.90 mrad/pixel

Streaming Resolution

RTSP video streaming (source 0) - 640 × 480 pixels; RTSP video streaming (source 1) - 1280 × 960; radiometric streaming: 640 × 480 pixels

Video Streaming

RTSP protocol

Overlay

With / Without

Visible Camera

Camera f-number

1.3

External Optics & Windows Correction

Based on input of optics/window transmission and temperature

Measurement Corrections

Global object parameters, local parameters per analyze function, external blackbody correction

Measurement Presets

Yes

Reflected Apparent Temperature Correction

Based on input of reflected temperature

Automatic Hot & Cold Detection

Max./min. temperature value and position shown within box

Thermal Sensitivity_NETD [typical]

External Power Operation

24/48 V DC 8 W max

Power Connection

M12 12-pin A-coded, male (shared with Digital I/O)

Power Consumption

7.5 W at 24 V DC typical/7.8 W at 48 V DC typical/8.1 W at 48 V PoE typical

External Voltage

Allowed range 18–56 V DC

Image Source

Packaging

Image Storage
