FLIR E86-EST Handheld Elevated Skin Temperature Screening Solution

FLIR E86-EST Handheld Elevated Skin Temperature Screening Solution

Rs. 135,499.00
Rs. 135,499.00
Sale Sold out
Model

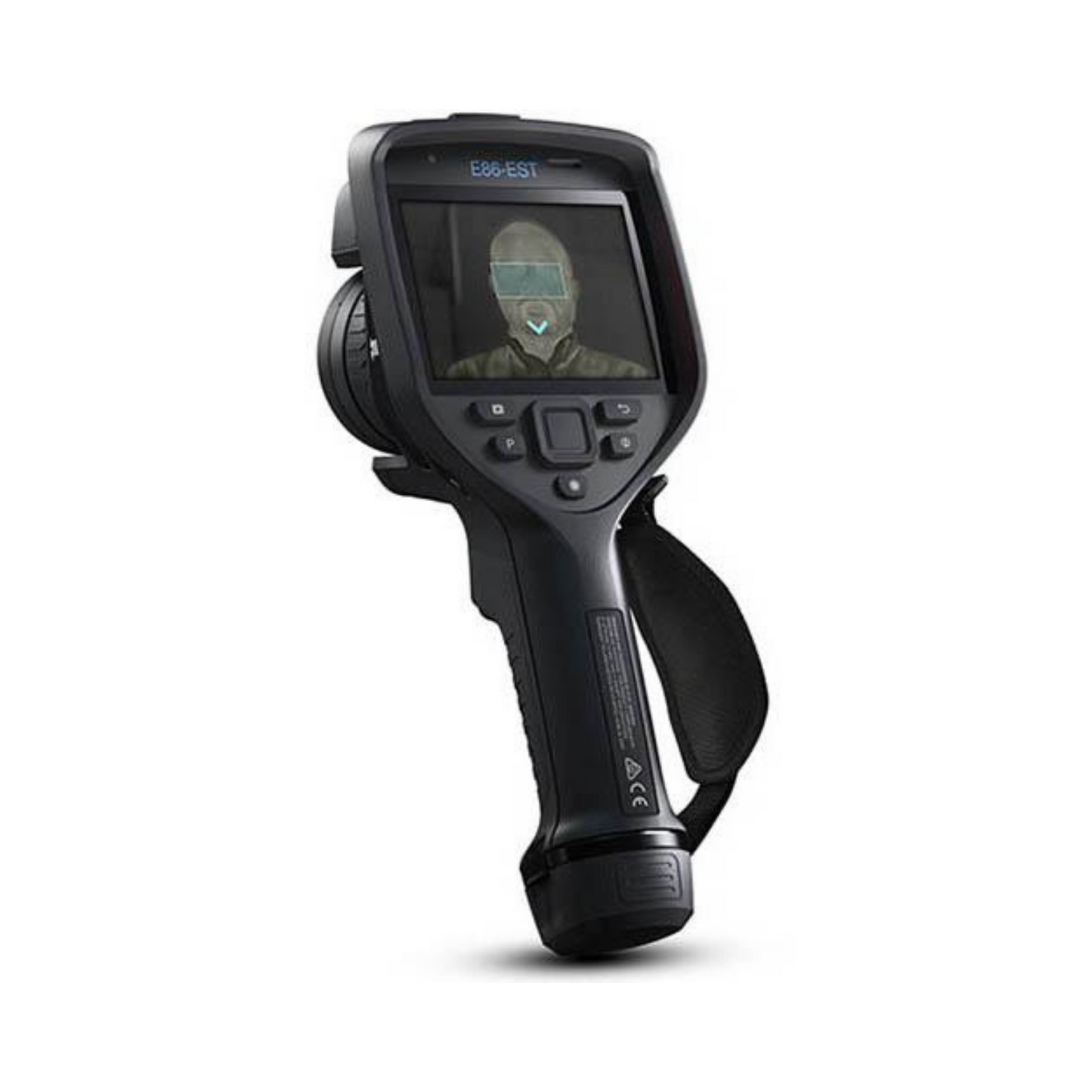

THE FLIR E86-EST HANDHELD THERMAL CAMERA

The FLIR E86-EST handheld thermal camera is a non-contact screening tools that serve as a first line of defense against potential health risks. This FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. With 464 × 348 thermal pixel resolution and bright touchscreen display, the E86-EST offers accurate, easy-to-interpret temperature measurement. The on-camera FLIR Screen-EST Mode offers visual positioning guides, automatic sampling to maintain an updated temperature average, and graphic pass/fail indicators for results, reducing the burden on screening station operators. Compatibility with FLIR Screen-EST Desktop software, an integrated tripod mount, and external power makes this camera a good fit for permanent installations.

EASY SET-UP AND OPERATION

Begin screening quickly with limited ramp-up time, simple video connectivity, and choice of >2.5-hour battery or external power.

FAST, ACCURATE SCREENING

Optimal screening accuracy with automatic ambient drift compensation, visual pass/fail graphic indicators, and audible alarms.

MAINTAIN SAFETY AND PRIVACY

On-camera FLIR Screen-EST Mode does not store images or personal information and allows for social distancing in screening setups.

Get in Touch

SPECIFICATIONS

OVERVIEW

Display Technology

IPS

Field of view (FOV)
24° × 18°

Focal Length
17 mm (0.67 in)

Housing material
PCABS with TPE, magnesium

IR Resolution
464 × 348

Object Temperature Range
15°C to 45°C (59°F to 113°F)

Programmable Buttons

1

Size (L x W x H)
278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)

Warranty
http://www.flir.com/warranty/

Weight
1 kg (2.2 lbs)

FLIR Screen-EST Mode
Yes

Sampling Average in Screen-EST Mode
Recommended range: 30 to 45°C (86 to 113°F) in stable room temperature

Accuracy [Drift] in Screen-EST Mode

±0.3°C (±0.5°F)

App

Palette
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

Connections & Communications

Communication Interfaces
USB 2.0, Bluetooth, Wi-Fi

Remote Control
Bluetooth®-enabled Remote Operation Button

Storage Media
Removable SD card (8 GB)

USB
USB Type-C: data transfer/video/power

USB - Standard
USB 2.0 High Speed

Video Out
DisplayPort over USB Type-C

WiFi
Peer to peer (ad hoc) or infrastructure (network)

Setup Commands
Local adaptation of units, language, date and time formats

Command and Control
On-camera screen, USB Type-C

Enviromental

Drop
Designed for 2 m (6.6 ft)

Emissivity Correction
Yes: variable from 0.01 to 1.0 or selected from materials list

Operating Temperature Range
-15°C to 50°C (5°F to 122°F)

Radio Spectrum
ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2

Safety
EN/UL/CSA/PSE 60950-1

Storage Temperature Range
-40°C to 70°C (-40°F to 158°F)

Tripod Mounting
UNC ¼"-20

Shock & Vibration & Encapsulation
25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1

Aspect ratio
4:3

Camera f-number
1.3

Color

Black

Color depth (bits)

24

Detector Type and Pitch
Uncooled microbolometer, 17 µm

Digital Data Streaming
Simultaneous thermal and visible, USB Type-C

Digital Zoom
1-4x continuous

Focus
Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual

Frame Rate
30 Hz

Image Modes
Infrared, visual, MSX°, picture-in-picture

Lens
24°

Lens Identification

Automatic

Minimum Focus Distance
0.15 m (0.49 ft)

Spatial resolution (IFOV)
0.90 mrad/pixel

Spectral Range
7.5–14 µm

Viewfinder

No

MSX

Yes

UltraMax
Yes

Viewing Angle
80°
Measurement & Analysis

Languages
21

Measurement Corrections

Yes

Reference Temperature
Yes

Automatic hot & cold detection
Auto-maximum/minimum markers within area

Meter Data

Cover Glass Material
Dragontrail®

Display
4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness
Other

Stream Non_Radiometric Video
H.264 or MPEG4 over Wi-Fi, MJPEG over UVC and Wi-Fi

Stream Radiometric Video
Over UVC

Thermal Sensitivity_NETD [typical]
<40 mK @ 30°C (86°F)

Power

Battery Life (Operating)
>2.5 hours at 25°C (68°F) and typical use

Battery size (L x W x H)
150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in)

Battery Type
Rechargeable Li ion battery, >2.5 hrs (typical use)

Battery voltage
3.6 V

Battery weight
140 g (4.9 oz)

Charging Temperature
0°C to 45°C (32°F to 113°F)

Charging Time (using two-bay charger)
2.5 hours to 90% capacity with charging status indicated by LEDs

External Power Operation
USB 2.0 A to USB Type-C with Power supply

Power Management
No

Shipping Information

Packaging
Infrared camera with lens, battery (2 ea), battery charger, front protection, carabiner hook, straps (hand, wrist), hard transport case, lanyards, lens caps, lens cleaning cloth, power supplies, Torx T10 wrench, screws, cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C, USB Type-C to HDMI), USB-C to USB Type-A with power supply included, remote operation button, 8 GB SD card, printed documentation

Storage Media

Image File Format
Standard radiometric JPEG, measurement data included
